Rails

Bemo Rail is a worldwide market leader in the field of crane rails. You can contact us for all types of rail profiles.

We offer American, European, African, Australian, Asian and Chinese rail profiles. With our extensive range of profiles we serve multiple customers in various industries, such as the steel & mining industry, container terminals, shipyards, heavy industry, bulk transhipment companies, concrete & cement industry and in metro & light rail projects.

Our rails are both available in the standard length of 12 metres, as well as specific lengths and steel grades on request.

Below is an overview of our rail types, crane rail, vignola rail, light & tramrail and other types.

Rail profiles

We offer American, European, African, Australian, Asian and Chinese rail profiles. Contact us for more information.

Vignola rail

Crane rail low

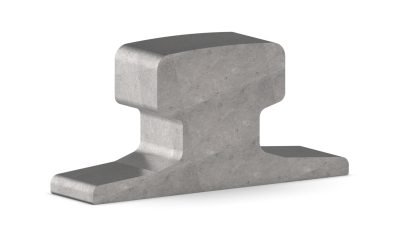

Crane rail high

Crane rail

Light- and tramrail

Special rail profiles

Railprofiles worldwide

We offer American, European, African, Australian, Asian and Chinese rail profiles. The tables below show the profile specifications. Click on an arrow to unfold a table.

European DIN rail profiles

RAIL SECTION	MASS G (KG/M	HEIGHT H (MM)	FOOT B (MM)	HEAD K (MM)	WEB W (MM)	NEUTRAL AXIS E (MM)	ADMITTED WHEELLOAD (KN)	FACTORY STOCK (M)	STANDARD TENSIL STRENGTH (N/MM2)	DOWNLOAD PDF
A 45	22,10	55	125	45	24	33,30	90	10/12/15	690/880/1080	A45.pdf
A 55	31,80	65	150	55	31	39	135	10/12/15	690/880/1080	A55.pdf
A 65	43,10	75	175	65	38	44,70	200	10/12/15	690/880/1080	A65.pdf
A 75	56,20	85	200	75	45	50,40	315	10/12/15	690/880/1080	A75.pdf
A 100	74,30	95	200	100	60	52,90	450	10/12/15	690/880/1080	A100.pdf
A 120	100,00	105	220	120	72	57,90	650	10/12/15	690/880/1080	A120.pdf
A 150	150,30	150	220	150	80	77,30	1050	12/15	690/880/1080	A150.pdf
MRS 73	73,63	157	146	70	32	89	320	12/15	690/880/1080	MRS73.pdf
MRS 86	85,53	102	165	102	80,30	54,49	470	12/15	690/880/1080	MRS86.pdf
MRS 87a / PRI 85r	86,80	52,40	152,40	101,60	34,90	76,83	460	12/15	690/880/1080	MRS87A.pdf
MRS 125	125	180	180	120	40	91,40	725	12/15	690/880/1080	MRS125.pdf
MRS 192	192	157,2	229	140	128,3					MRS192.pdf
MRS 221	221,4	160	220	220	145					MRS221.pdf
S7	6,75	65	50	25	5	33,95	28	5/6	540	S7.pdf
S10	10	70	58	32	6	35,12	45	6/8/10/12	540	S10.pdf
S14	14	80	70	38	9	41,80	64	6/8/10/12	690/880/1080	S14.pdf
S18	18,30	93	82	43	10	47,90	82	6/8/10/12	540	S18.pdf
S20	19,80	100	82	44	10	51,80	86	6/8/10/12	690/880/1080	S20.pdf
S24	24,43	115	90	53	10	58,52	125	6/8/10/12	690/880/1080	S24.pdf
30E1/ S30	30,13	108	108	60,30	12,30	55,88	140	15/12	690/880/1080	30E1-S30.pdf
33E1/ S33	33,47	134	105	58	11	67,33	150	15/12	690/880/1080	33E1-S33.pdf
41E1/ S41 r=10mm	41,24	138	125	67	12	69,34	220	15/12	690/880/1080	41E1-S41-R10.pdf
40E1/ S41 r=14mm	40,95	138	125	67	12	69,80	210	15/12	690/880/1080	40E1-S41-R14.pdf
49E1/ S49	49,39	149	125	67	14	75,77	225	12/15/18	690/880/1080	49E1-S49.pdf
54E3/ S54	54,54	154	125	67	16	79,12	245	12/15/18	690/880/1080	S54.pdf
54E1/ UIC54	54,77	159	140	70	16	84,03	280	12/15/18	690/880/1080	54E1-UIC54.pdf
60E1/ UIC60	60,21	172	150	72	16,50	91,10	295	12/15/18	690/880/1080	60E1-UIC60.pdf
UIC54A	65,39	159	140	70	28	86,33	310	12/15/18	690/880/1080	UIC54A.pdf
UIC60A	61,11	142	150	72	28	76,56	320	12/15/18	690/880/1080
AS86	85,88	152,46	150	101,60	35	68,10	460	12/15	690/880/1080	AS86.pdf
CR 73	73,3	135	140	100	93,4					CR73.pdf
CR 100	100,2	150	155	120	39					CR100.pdf
39E1 (BS80A)	39,77	133,40	117,5	63,5	13,1					BS-80-A.pdf
45E1 (BS90A)	45,11	142,88	127	66,67	13,9					BS-90-A.pdf
45E3 (RN45)	44,79	142	130	66	15					45E3-RN45.pdf
46E2 (U33)	46,27	145	134	62	15					46E2-U33.pdf
49E1 (S49)	49,39	149	125	67	14	75,77	225	12/15/18	690/880/1080	49E1-S49.pdf
49E5, 50E2 (50EB-T)	49,13	149	125	67	14
50E6 (U50)	50.9	153	140	65	15.5			12-25m
54E1 (UIC54)	54,77	159	140	70	16	84,03	280	12/15/18	690/880/1080
54E2 (UIC54E)	53.82	161	125	67.01	16			12-25m
54E3 (S54)	54,54	154	125	67	16	79,12	245	12/15/18	690/880/1080
54E4	54,31	154	125	67	16
54E5 (54E1AHC)	54,43	159	140	70,2	16
60E1 (UIC60)	60,21	172	150	72	16,50	91,10	295	12/15/18	690/880/1080
60E2	60,03	172	150	72	16,5
MAV48	48,50	148	120	66,8	14

If you are looking for a rail profile that is not in the overview, please contact us.

American rail profiles

RAIL SECTION	MASS G (KG/M	HEIGHT H (MM)	FOOT B (MM)	HEAD K (MM)	WEB W (MM)	DOWNLOAD PDF
CR104/ MRS 51	51,59	127	127	63,5	25,4	MRS51.pdf
CR105/ MRS 52	52,09	131,8	131,8	65,1	23,8	MRS52.pdf
CR135/ MRS 67	66,97	146,05	131,76	87,3	31,8	MRS67.pdf
CR171/ MRS 85	84,83	152,4	152,4	109,2	31,8	MRS85.pdf
CR175/ MRS 87B./ CR171 90ARA-A (TR45)	86,8	152,4	152,4	108	38,1	MRS87B.pdf
100-AREA	50,35	152,4	136,53	68,26	14,3	100-AREA.pdf
115-AREA (TR57)	52,3	168,3	139,7	64,6	15	115-AREA.pdf
119-AREA	59,41	173	139,7	69,4	15,9	119-AREA.pdf
131-AREA		180	152,4	74,5	16,7	131-AREA.pdf
132-AREA	66	181	152,4	75,3	16,7	132-AREA.pdf
136-AREA (TR68)	67,7	185,74	152,4	74,61	17,46	136-AREA.pdf
141 AB y 100ARA-B	49,67	143,3	130,6	65,1	14,3	100-ARA-B.pdf

If you are looking for a rail profile that is not in the overview, please contact us.

Chinese rail profiles

RAIL SECTION	MASS G (KG/M	HEIGHT H (MM)	FOOT B (MM)	HEAD K (MM)	WEB W (MM)	NEUTRAL AXIS E (MM)	ADMITTED WHEELLOAD (KN)	DOWNLOAD PDF
QU 70	52.8	120	120	70	28	U71Mn	12	QU70.pdf
QU 80	63.69	130	130	80	32	U71Mn	12	QU80.pdf
QU 100	88.96	150	150	100	38	U71Mn	12	QU100.pdf
QU 120	118.1	170	170	120	44	U71Mn	12	QU120.pdf
P38KG	38.73	134	114	68	13	U71Mn	12.5-25	P38KG.pdf
P43KG	44.65	140	114	70	14.5	U71Mn	12.5-25	P43KG.pdf
P50KG	51.51	152	132	70	15.5	U71Mn	12.5-25	P50KG.pdf
P60KG	60.64	176	150	73	16.5	U71Mn	12.5-25	P60KG.pdf
GB12KG	12.2	69.85	69.85	38.1	7.54	Q235B/55Q	6-12
GB15KG	15.2	79.37	79.37	42.86	8.33	Q235B/55Q	6-12
GB22KG	22.3	93.66	93.66	50.3	10.72	Q235B/55Q	6-12
GB30KG	30.1	107.95	107.95	60.33	12.3	Q235B/55Q	6-12

If you are looking for a rail profile that is not in the overview, please contact us.

Australian rail profiles

RAIL SECTION	MASS G (KG/M	HEIGHT H (MM)	FOOT B (MM)	HEAD K (MM)	WEB W (MM)	NEUTRAL AXIS E (MM)	ADMITTED WHEELLOAD (KN)	DOWNLOAD PDF
31KG	31.5	117.5	108	63,5	11.5	900A/1100	8-25	31KG-AS.pdf
47KG	46.5	141.3	127	70	14,3	900A/1100	8-25	47KG-AS.pdf
50KG	50.8	154	127	70	15	900A/1100	8-25	50KG-AS.pdf
60 KG	61	170	146	70	16.5	900A/1100	8-25	60KG-AS.pdf
68KG	67.6	186	152	73,4	17.5	900A/1100	8-25	68KG-BHP.pdf
73KG	73.63	157	146	70	32	900A/1100	8-25	73KG-BHP.pdf
86KG	85.5	102	165	102	84.11	900A/1100	8-25	86KG-BHP.pdf
89KG	89.81	114	178	102	51	900A/1100	8-25	89-KG.pdf
QU 70	52.8	120	120	70	28	U71Mn	12	QU70.pdf
QU 80	63.69	130	130	80	32	U71Mn	12	QU80.pdf
QU 100	88.96	150	150	100	38	U71Mn	12	QU100.pdf
QU 120	118.1	170	170	120	44	U71Mn	12	QU120.pdf

If you are looking for a rail profile that is not in the overview, please contact us.

African rail profiles

RAIL SECTION	MASS G (KG/M	HEIGHT H (MM)	FOOT B (MM)	HEAD K (MM)	WEB W (MM)	NEUTRAL AXIS E (MM)	ADMITTED WHEELLOAD (KN)	DOWNLOAD PDF
15KG	14.905	76.2	76.2	41.28	7.54	700	9	ISCOR-15.pdf
22KG	22.542	95.25	95.25	50.01	9.92	700	9	ISCOR-22.pdf
30KG	30.25	109.54	109.54	57.15	11.5	900A	9-25	ISCOR-30.pdf
40KG	40.31	127	127	63.5	14	900A	9-25	ISCOR-40.pdf
48KG	47.6	150	127	68	14	900A	9-25	ISCOR-48.pdf
57KG	57.4	165	140	71.2	16	900A	9-25	ISCOR-57.pdf
64KG	64,2	85	190	75,6	75,6			ISCOR-64.pdf
88KG	88,1	95	200	100,86	100,86			ISCOR-88.pdf
186KG	57,4	150	225	140	128

If you are looking for a rail profile that is not in the overview, please contact us.

Russian rail profiles

RAIL SECTION	MASS G (KG/M	HEIGHT H (MM)	FOOT B (MM)	HEAD K (MM)	WEB W (MM)	DOWNLOAD PDF
P50	50	152	132	71,9	16	P50.pdf
R65 (P65)	64,87	180	150	73	18	R65-P65.pdf
KP70	46,10	120	120	75,6	21	KP70.pdf
KP80	63,61	130	130	87		KP80.pdf
KP100	80,6	150	150	108	32-34	KP100.pdf
KP120	109	170	170	129	38-40	KP120.pdf
KR140	141,7	170	170	150	56	KR140.pdf

If you are looking for a rail profile that is not in the overview, please contact us.

Asian rail profiles

RAIL SECTION	MASS	HEIGHT	FOOT	HEAD	WEB	DOWNLOAD PDF
CR 73	73,3	135	140	100	93,4	CR73.pdf
CR 100	100,2	150	155	120	39	CR100.pdf
ISCR70	52,80	120	120	70	28	ISCR70.pdf
ISCR80	64,20	130	130	80	32	ISCR80.pdf
ISCR100	89	150	150	100	38	ISCR100.pdf
ISCR120	118	170	170	120	44	ISCR120.pdf
ISCR140	47	170	170	140	60	ISCR140.pdf
JIS-12-KG						JIS-12-KG.pdf
JIS-22-KG						JIS-22-KG.pdf
JIS-30-A-KG						JIS-30-A-KG-.pdf
JIS-37-A-KG						JIS-37-A-KG.pdf
JIS-40-N-KG						JIS-40-N-KG.pdf
JIS-50-N-KG						JIS-50-N-KG.pdf
JIS-60-KG						JIS-60-KG.pdf
QU70	52,80	120	120	70	28	QU70.pdf
QU80	63,69	130	130	80	32	QU80.pdf
QU100	88,96	150	150	100	38	QU100.pdf
QU120	118,10	170	170	120	44	QU120.pdf

If you are looking for a rail profile that is not in the overview, please contact us.

Custom-made

In our modern, fully equipped workshop and engineering department, rails can be cut to the desired size according to your requirements or processed otherwise. We have the knowledge and equipment for many necessary processing options, such as the drilling, milling, bending and preserving of rails.

If you do not know exactly which rail profile to use, our experienced consultants can provide you with detailed advice. The type of rail you need is determined based on the subsoil, foundation, the wheel load, speed and application.

Construction and maintenance

Bemo Rail has over 50 years of experience in the development, assembly, maintenance and repair of high-quality crane, rail track and rail systems. With our flexible organisation, modern equipment and dedicated professionals projects are completed within the deadline, complying with international quality and safety standards.

Supervision of local staff

Many projects can be done with local professionals, supervised by an all-round Bemo Rail project manager. Contact us to exchange ideas and to discuss the options.
